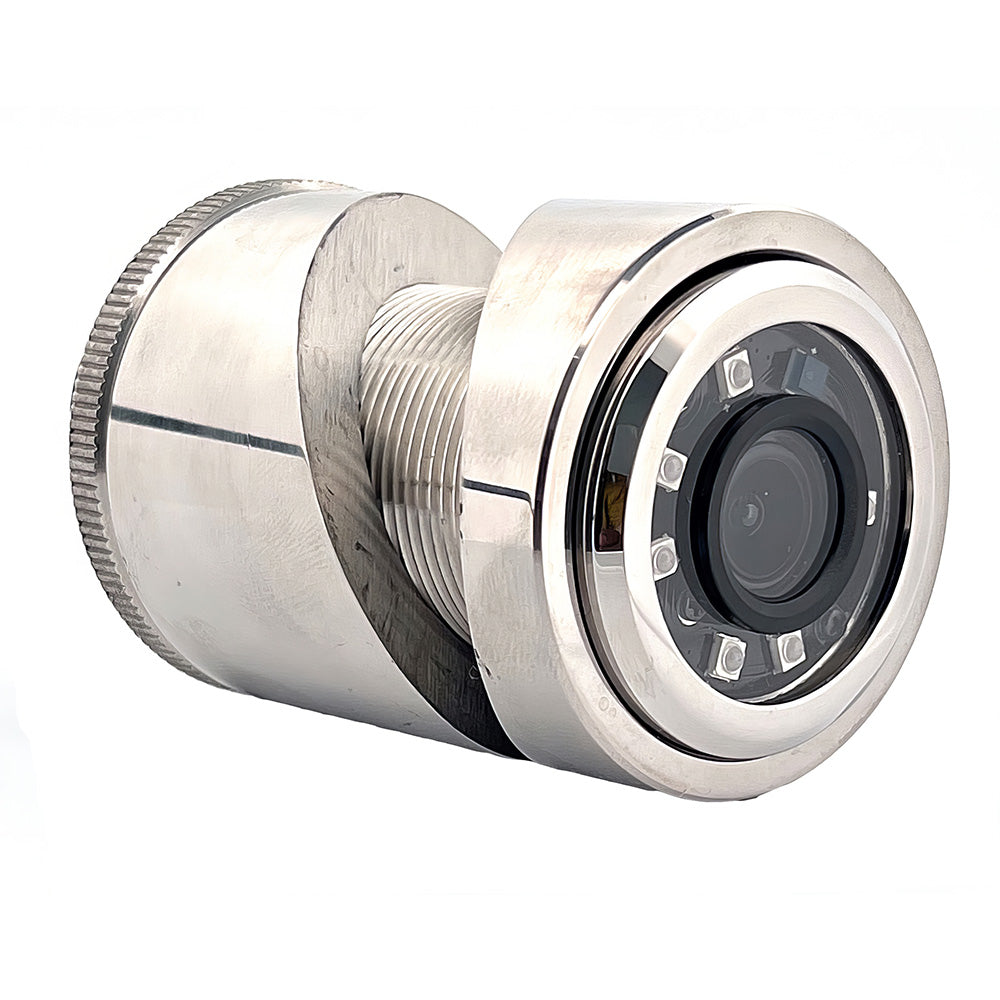

3MP Compact 316L Stainless Steel Thru-Hull/Panel IP Camera - 3.6mm Lens
Looking for a discrete backup or tender watch camera, covert security camera, or through hull/through transom camera Look no further - the IRIS-S435 (IP) / S1435 (Analogue / Analogue HD) compact bullet-style camera is what you need.
Available in marine grade 316L stainless steel or anodized aluminum, the S435/S1435 is available as an IP camera (IRIS-S435) based on our best-selling S460 camera engine and also in analog/analog HD formats (IRIS-S1435).
The camera features built-in infrared LED illumination for close-range (10m) visibility in the dark and is supplied with 60 wedge adapters to enable you to angle the camera if necessary.
The IP version of the camera (IRIS435) is directly compatible with Raymarine, Navico (Simrad, B G, Lowrance), and Furuno chart plotters. Compatibility with Garmin MFDs is achieved in conjunction with our CMAC camera management system for boats.
The analog/analog HD version of the camera can interface with all chart plotters supporting composite video in CVBS mode, and when switched to any of the three analog HD modes (AHD, TVI, CVI) interfaces either through our CMAC system or by using an Iris TVIHDMI convertor to provide HD resolution in real-time.
The camera can be supplied with 80, 120, and 154 lens options and is ONVIF profile S compliant.
Finally, with an IP68 environmental rating, the camera can also be used below the water line to keep an eye on running gear, film your fishing adventure,s or even attached to a pole and used as an underwater inspection camera.
Features:
- Available in IP or Analogue (CVBS, TVI, CVI, AHD) Formats
- Machined from 316 Marine Grade Stainless Steel or Aluminum
- 3MP HD Resolution (IP Models)
- 2MP HD Resolution (Analogue Model (TVI, CVI or AHD mode)
- SD Analogue (CVBS) format 1000TVL Resolution
- Compatible with Raymarine / Axiom (LH2 and Higher)
- Compatible with Furuno TZT / TimeZero 4.1
- Compatible with Navico MFDs Inc. SIMRAD, Lowrance, and B G
- Compatible with CMAC for use with Garmin MFDs
- Built In Infra Red LED Illumination (8m Range)
- PoE Option (IRISS460 IP Model)
- Use Above or Below Water Level
- IP68 Environmental Protection
Technical Specifications:
- Format - IP
- Resolution - 2304 x 1296
- Horizontal Field of View - 80
- Interface - RJ45 10/100 Base T Ethernet / Setup through Browser
- Video Processing - H.264 / H.265 Codec / Dual Stream (Main / Substream) 3 Instances Max
- Protocol/Video Format - TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
- Onvif - Profile S v2.4
- Bitrate - VBR / CBR 32kbps 8Mbps
- Illumination - 6 x 850nm Infra Red - 10 meter Range / Available with White LED Illumination on Request
- Mirroring - Horizontal Vertical - Configure via Browser Interface
- Operating Temperature - -30 - +60
- Connections - Water Resistant RJ45 Socket (Field Installable Backshell Supplied) / Non-PoE with 2.5mm DC Power Socket
- Material - 316L Marine Grade Stainless Steel / Aluminum Option Available
- Power - PoE IEEE802.3af / 12VDC <200mA Max
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Iris Innovations IRIS435-36 is a high-performance, compact marine IP camera designed for discreet surveillance above and below waterline. Crafted from durable 316L marine grade stainless steel, this camera is ideal for boat owners, marine security professionals, and underwater inspection specialists seeking reliable, corrosion-resistant surveillance equipment. Its 3MP resolution ensures sharp, detailed images, making it suitable for critical monitoring tasks such as tracking vessel activity, inspecting underwater gear, or recording fishing adventures. The built-in infrared LEDs provide up to 10 meters of clear night vision, allowing operation in low-light conditions without external lighting, while the IP68 environmental rating ensures resilience against water, dust, and harsh weather conditions, making it perfect for demanding marine environments.
The IRIS435-36 offers versatile compatibility, supporting multiple video formats including IP, CVBS, TVI, CVI, and AHD, facilitating seamless integration with a wide range of marine chart plotters and digital fish finders from Raymarine, Furuno, Navico, and Garmin. The IP version is ONVIF profile S compliant and supports PoE (Power over Ethernet) for simplified power and data transmission. With options for 80, 120, and 154-degree lenses, this camera adapts to various visibility needs, whether monitoring above water decks or inspecting underwater structures. Its rugged construction, advanced video processing with H.264/H.265 codecs, and multiple streaming capabilities make it a reliable choice for both professional and recreational marine applications.
Designed for easy installation and operation, the IRIS435-36 can be mounted above or below the waterline, providing versatile surveillance options. Use it for boat security, underwater inspections, or capturing fishing footage. Its compatibility with popular marine systems and robust build quality ensures long-lasting performance in challenging environments. Whether you need a covert camera for security or an inspection tool for underwater maintenance, this marine-grade camera delivers high-quality imaging and dependable durability in a compact form factor.
|
